LINKABLE LED MINI LINEAR LIGHT

Try out our easy-to-use Order Form

   Color Temperature3000K / 5000K
Voltage12V DC
Wattage2.8W
Lumens200
Beam Degree120°
DimensionsL12 x W5/8 x H5/16 in.
HousingAluminum
Mounting ClipsPC
IncludedFlat mounting hardware

Max length of 20FT in a row (20 lights) without needing a new power feed from the power supply

Frosted LL3 Lens

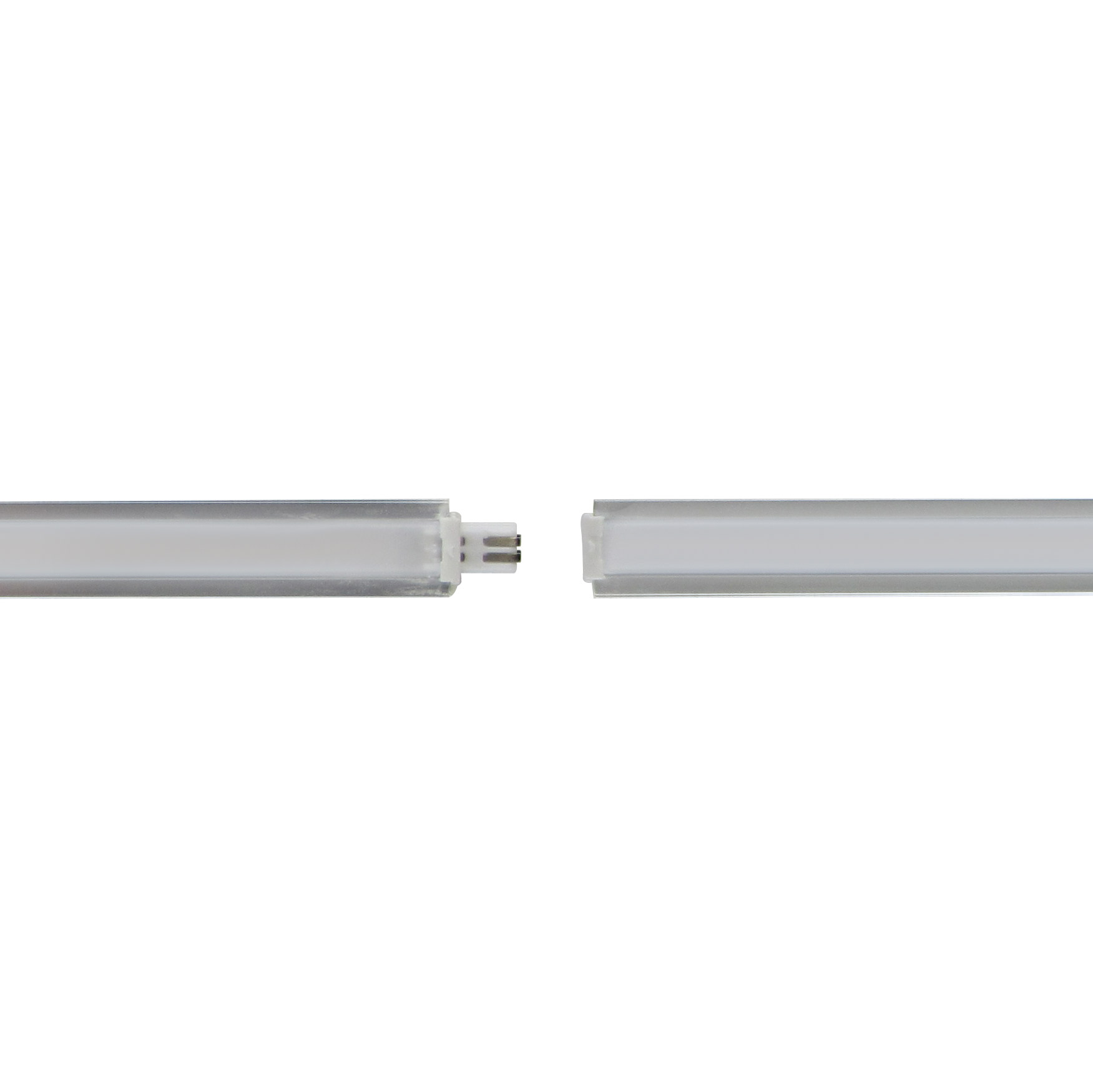

Frosted Easy Linkable Connection

Clear LL3 Lens

Clear Easy Linkable Connection

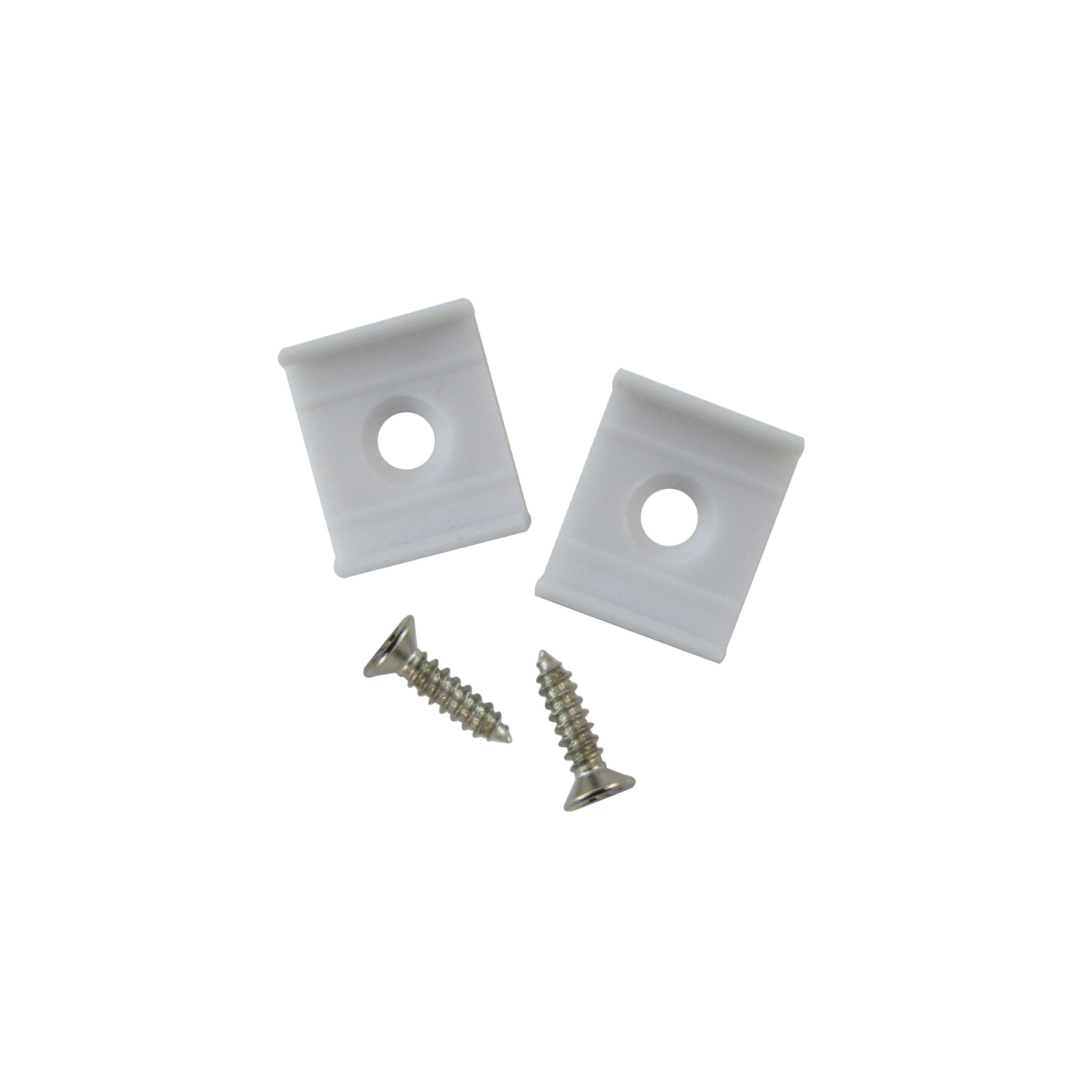

Includes Flat Mounting Clips

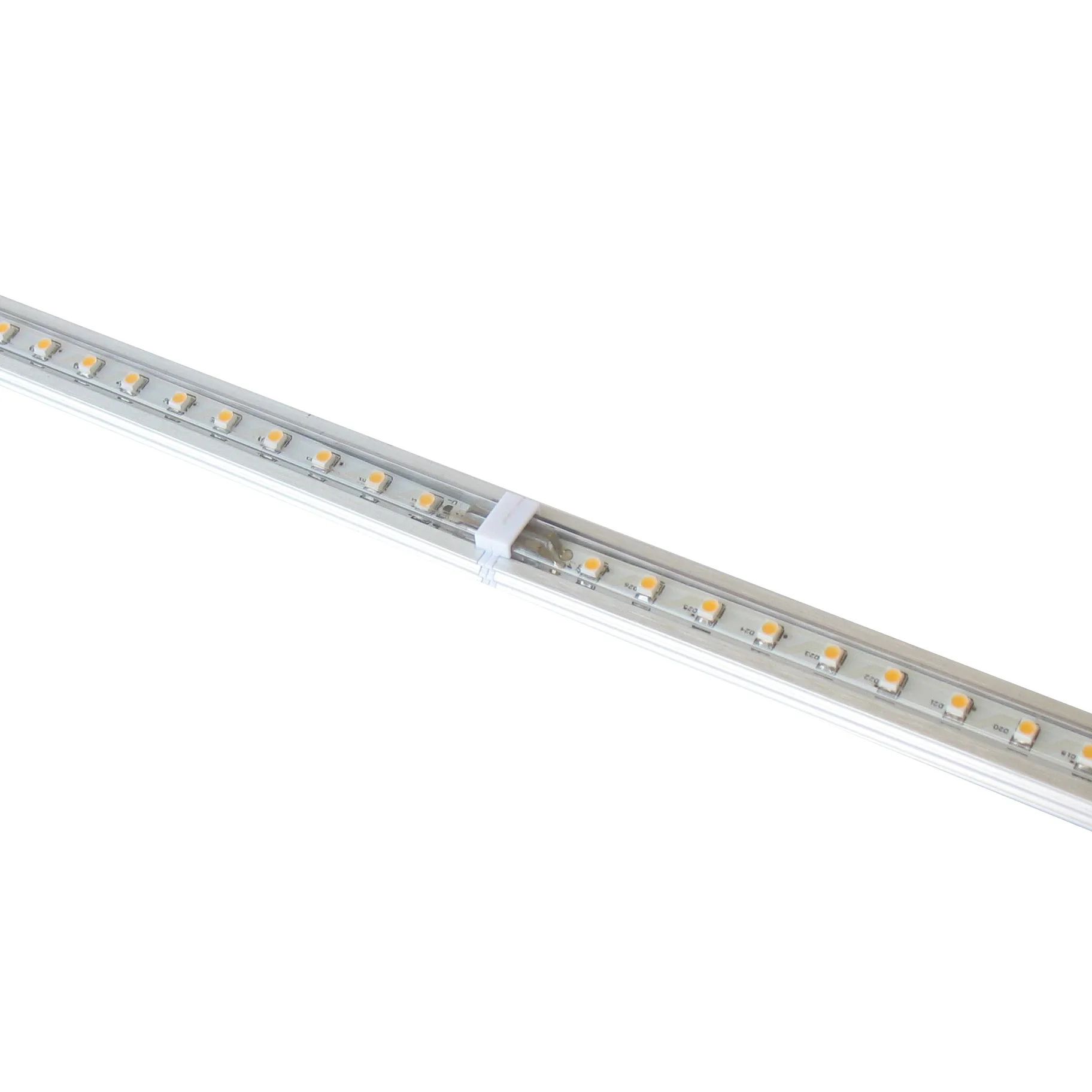

Seamless Connection LED Linear Cabinet Lighting
Clear and Frosted lens also available

Accessories Options

90° Swivel Mounting Clips

12 in. Power Feed

12 in. Corner Connector

DOWNLOADS

LL3 Spec Sheet

LL3 Diagram

Order Form

Try out our easy-to-use Order Form

Color Temperature	3000K / 5000K
Voltage	12V DC
Wattage	2.8W
Lumens	200
Beam Degree	120°
Dimensions	L12 x W5/8 x H5/16 in.
Housing	Aluminum
Mounting Clips	PC
Included	Flat mounting hardware
